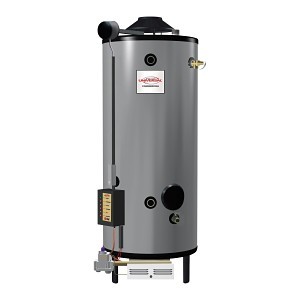

Universal™ Atmospheric Commercial Gas Water Heater, ASME, 100 gal, Natural Gas, 270 Kbtu/hr
PartRHEG100270A
MFGG100-270(A)
Description
Rheem® Gas Water Heater, Series: Universal™, 270000 Btu/hr Heating, Natural Gas, 100 gal Tank, Direct Spark Ignition, Atmospheric Vent, 8 in Vent Size, 262 gph Recovery, 80 % Energy Efficient, 1-1/2 in, 2 in Water Connection, 160 psi, 180 deg F, Ultra Low NOx: No, ASME Yes/No: Yes, Steel, Porcelain Enamel, 30-1/4 in Dia x 73-7/8 in H
Notice
Price/Availability Accessible On Login- THIS HEATER DOES NOT COMPLY WITH SCAQMD AND CANNOT BE SOLD IN MOST CALIFORNIA COUNTIES. PLEASE CHECK WITH YOUR SALESMEN IF UNSURE OF YOUR AIR DISTRICT LAWS
- The tighter the commercial retrofit, the more you will appreciate how the Universal™ compact size and multiple water connections simplify installations
- Space saver design - The short heights and narrow jacket diameters, plus the top, front and rear water inlets/outlets offer the ultimate in installation flexibility
- System Sentinel™ LED diagnostic system - Our exclusive diagnostic system, with glowing LED lights, verifies system operation sequence by sequence
- Patented technology - Universal™ proprietary steel formulation, patented multi-flue design, combined with two coats of porcelain enamel, results in a superior heat exchanger design
- Stainless steel burners - Precision burners, raised port design are formed from high chromium stainless steel
- Each burner assembly slides out like a drawer for quick inspection and maintenance
- Low profile automatic flue damper - Low profile damper minimizes overall product height
- Heavy duty vent hood supports are designed to withstand the rigors of installation
- Full-port, full flow drain valve - Factory installed brass drain valve allows for faster draining and servicing
- Direct spark-to-pilot ignition system - Energy saving ignition that ignites pilot only when there is a call for heat
- Altitude compliant - Up to 5000 ft for natural gas
- Patented anode rods - Anode design utilizes multiple magnesium rods to ensure corrosion resistance for a long tank life
- Designed to fit into tight retrofit applications
- 1-1/2 in top inlet/outlet and 2 in front/rear side
- 262 gph at 100 deg F rise
Universal™ is a family of commercial gas water heaters that are designed to fit into tight retrofit applications.
| Fuel Type | Natural Gas |
| Tank Capacity Range | 98 to 100 gal |
| Ultra Low NOx | No |
| Type | Tall |
| Heating Capacity | 270 Kbtu/hr |
| Vent Type | Atmospheric |
| ASME Yes/No | Yes |
| Series | Universal™ |
| Tank Capacity | 100 gal |
| Dimensions | 30-1/4 in Dia x 73-7/8 in H |
| Energy Efficiency | 80 % |
| Finish | Porcelain Enamel |
| Gas Connection | 3/4 in |
| Ignition Type | Direct Spark |
| Material | Steel |
| Pressure Rating | 160 psi |
| Recovery Rate | 262 gph at 100 deg F Rise |
| Temperature Rating | 180 deg F |
| Vent Size | 8 in |
| Water Connection | 1-1/2 or 2 in |
| Brand | Rheem® |
| UNSPSC | 40101826 |
| Manufacturer | Rheem Manufacturing |
| Manufacturer Part Number | G100-270(A) |
3 Years Limited On Tank and 1 Year Limited On Parts
AHRI Certified|ANSI Z21.10.3|ASHRAE Standard|ASME Specified|California Energy Commission (CEC)|CSA Certified|Gama Certified|Prop65: This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
