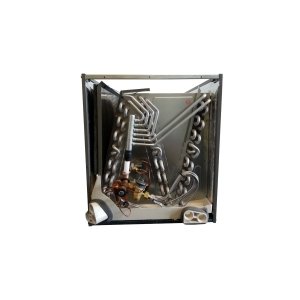

Evaporator Coil, 5 ton, Multi-Position, Cased, R410A
PartRUURCF6021STAMCA
MFGRCF6021STAMCA
Description
RUUD® RCF6021STAMCA Evaporator Coil, 5 ton, Multi-Position, Cased, R410A
Notice
Price/Availability Accessible On Login- C-20 LICENSE & EPA CERTIFICATE REQUIRED FOR PURCHASE OF THIS PRODUCT
- RUUD® Indoor Furnace cased coils and replacement uncased coils are designed for use with RUUD outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with RUUD outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,000 BTU/HR [17.6 kW]
- Constructed of aluminum fins bonded to internally grooved aluminum tubing
- Coils are tested at the factory with an extensive refrigerant leak check
- Coils have copper sweat refrigerant connections
- Feature two sets of 3/4" [14.1 mm] N.P.T. Condensate drain connections for ease of connection
- Chatleff metering device connections, at inlet and outlet of TXV and equalizer connections
- Approved for system application with variety of RUUD outdoor units
- Condensate drain pan is constructed of high grade, heat resistant, corrosion free thermal-set material
- Bi-Directional airflow eliminates the need to switch any internal components from horizontal left to right
- Unique drain pan design maximizes application flexibility and condensate removal
- N-Coil design maximizes performance and minimizes height required at installation
- Coils are AHRI certified for system application with a variety of RUUD outdoor units
RUUD® Indoor Furnace cased coils and replacement uncased coils are designed for use with RUUD outdoor units and are available for vertical upflow or downflow, and horizontal left or horizontal right airflow. When matched with RUUD outdoor units, the coils provide a nominal capacity range from 18,000 BTU/HR [5.24 kW] to 60,000 BTU/HR [17.6 kW].
| Type | Cased |
| Air Flow Type | Multi-Position |
| Nominal Capacity | 5 ton |
| Refrigerant Type | R410A |
| Cooling Capacity | 60 Kbtu/hr |
| Liquid Line Size | 3/8 in |
| Suction Line Size | 3/4 in |
| Brand | RUUD® |
| Package Width | 22.75 in |
| Package Height | 34.88 in |
| Package Length | 22.81 in |
| Item Width | 22.75 in |
| Item Length | 24.06 in |
| Item Height | 34.88 in |
| Manufacturer | Rheem Manufacturing |
| UPC | 662021384813 |
| Manufacturer Part Number | RCF6021STAMCA |
Parts: Five (5) Years
UL Listed
For Gas And Oil Furnaces
Notice
Price/Availability Accessible On Login- C-20 LICENSE & EPA CERTIFICATE REQUIRED FOR PURCHASE OF THIS PRODUCT
RUUD®Evaporator Coil, 5 ton, Multi-Position, Cased, R410A
