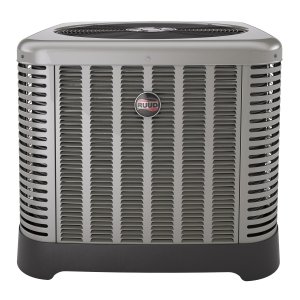

Residential Heat Pump, 2.5 ton, 16.6 Kbtu/hr Heating, 208-240 VAC, 1 ph
PartRUURP1430AJ1NA
MFGRP1430AJ1NA
Description
Rheem® Heat Pump, 1-Stage, Series: Classic® RP14, 2.5 ton Nominal, 30000 Btu/hr Heating, 208/230 VAC, 1 ph, 60 Hz Power Source, 2535 cfm Flow Rate, 11.5 EER, 14 SEER, 8.2 HSPF, 3.5 COP, Scroll Compressor, R-410A Refrigerant, 3/4 in Suction Line, 3/8 in Discharge Line, 1/8 hp Condenser Motor, 1077 rpm Condenser, 30 A Fuse, Direct Drive, 76.5 dB Sound Level, Gray, 29-3/4 in L x 29-3/4 in W x 25 in H Dimensions, Import
Notice
Price/Availability Accessible On Login- PRODUCT SOLD IN SELECT AREAS ONLY. CONTACT YOUR LOCAL BRANCH FOR INFO
- C-20 LICENSE & EPA CERTIFICATE REQUIRED FOR PURCHASE OF THIS PRODUCT
- New composite base pan-dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed
- Powder coat paint system for a long-lasting professional finish
- Scroll compressor uses 70% fewer moving parts for higher efficiency and increased reliability
- Modern cabinet aesthetics-increased curb appeal with visually appealing design
- Curved louver panels provide ultimate coil protection, enhance cabinet strength, and increased cabinet rigidity
- Optimized fan orifice: Optimizes airflow and reduces unit sound
- Rust resistant screws-confirmed through 1500-hr salt spray testing
- PlusOne™ expanded valve space 3 in, 4 in and 5 in service valve space provides a minimum working area of 27 sq-in for easier access
- PlusOne™ triple service access-15 in wide, industry leading corner service access makes repairs easier and faster
- Diagnostic service window with two-fastener opening provides access to the TXV valves and the heat pump reversing valve before opening the unit
- External gauge port access-allows easy connection of low-loss gauge ports
- Single-row condenser coil makes unit lighter and allows thorough coil cleaning to maintain out of the box performance
- 35% fewer cabinet fasteners and fastener-free base allow for faster access to internal components and hassle-free panel removal
- Fan motor harness with extra-long wires allows unit top to be removed without disconnecting fan wire
- Non-communicating control
The RP14A is our 14 SEER heat pump and is part of the RUUD heat pump product line that extends from 14 to 20 SEER. This highly featured and reliable heat pump is designed for years of reliable, efficient operation when matched with RUUD indoor aluminum evaporator coils and furnaces or air handler units with aluminum evaporators.
| Nominal Capacity | 2.5 ton |
| Heating Capacity | 16.6 Kbtu/hr |
| Voltage Rating | 208-240 VAC |
| Phase | 1 ph |
| Amperage Rating | 14.1 A |
| Color | Gray |
| Compressor Type | Scroll |
| Cooling Capacity | 30 Kbtu/hr |
| COP Rating | 3.5 |
| Decibel Rating | 76.5 |
| Dimensions | 29-3/4 in L x 29-3/4 in W x 25 in H |
| Discharge Line Size | 3/8 in |
| Domestic/Import | Import |
| Drive Type | Direct |
| EER Rating | 12 |
| Flow Rate | 2535 cfm |
| Fuse Size | 30 A |
| HSPF Rating | 8.2 |
| Motor HP | 1/8 hp |
| Motor RPM | 1077 rpm Condenser |
| Power Source | 208/230 VAC, 1 ph, 60 Hz |
| Refrigerant Type | R-410A |
| SEER Rating | 14 |
| Series | Classic |
| Sound Level | 76.5 dB |
| Stages Cool | 1 |
| Suction Line Size | 3/4 in |
| Type | Heat Pump |
| Brand | RUUD® |
| Package Width | 32.38 in |
| Package Height | 26.75 in |
| UNSPSC | 40101806 |
| Package Length | 32.38 in |
| Item Width | 33 in |
| Item Length | 33.25 in |
| Country of Origin | MX |
| Item Height | 27.9 in |
| Manufacturer | Rheem Manufacturing |
| UPC | 662021377938 |
| Manufacturer Part Number | RP1430AJ1NA |
Conditional Parts (Registration Required): Ten (10) Years
AHRI Certified|ASTM B117|cULus Listed
