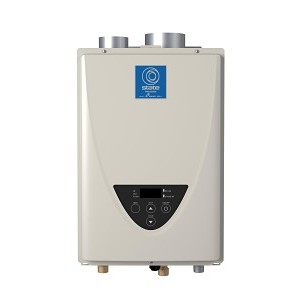

ProLine® XE Tankless Water Heater, 199 Kbtu/hr, Natural/Propane, Indoor, Ultra Low NOx, 0.82 EF
PartSTAGTS510UI
MFG100227717
Description
State Industries Tankless Water Heater, Series: 510, 199000 Btu/hr Heating, Natural Gas Fuel, 3/4 in MNPT Gas Connection, Electronic Ignition, Direct/Power Vent, 3 in, 4 in Vent, Non-Condensing Condensing/Non Condensing, 10 gpm Flow Rate, 0.82, Copper Heating Element, 3/4 in MNPT Water Connection, 15 to 150 psi Pressure, Yes Ultra Low NOx, Indoor Indoor/Outdoor, 20-1/2 in H x 13-3/4 In W x 10 in D, Commercial/Residential
Price/Availability Accessible On Login
- Field convertible from natural gas to propane
- Complies with SCAQMD rule 1146.2 and other air quality management districts with similar NOx emission requirements of 14 NG/J or 20 PPM
- Copper heat exchanger
- GTS-510U-I and GTS-510U-E can be used in both residential and commercial applications
- Easy-link up to 4 units (no additional parts or accessories needed)
- Multi-link up to 20 units
- Complies with lead free standards
- Built-in freeze protection
- Manual reset hi-limit (up to 194 deg F)
- Overheat cut-off fuse
- Inlet and outlet thermistors for constant temperature monitoring
- Air fuel ratio rod
- Flame sensor
- Vertical or horizontal installation
- Ultra low NOx non-condensing
Fully modulating, gas fired, tankless water heater with sealed combustion and power vented flue. Indoor and outdoor models available for residential and commercial applications. Supplies hot water to domestic hot water systems and can be used with water storage tanks, recirculation systems, and/or combined domestic and heating applications.
| Fuel Type | Natural/Propane |
| Heating Capacity | 199 Kbtu/hr |
| Indoor/Outdoor | Indoor |
| Condensing/Non Condensing | Non-Condensing |
| Ultra Low NOx | Yes |
| Series | ProLine® XE |
| Energy Factor | 0.82 |
| Commercial/Residential/Dual | Commercial/Residential |
| Dimensions | 20-1/2 in H x 13-3/4 in W x 10 in D |
| Flow Rate | 10 gpm |
| Gas Connection | 3/4 in MNPT |
| Heating Element | Copper |
| Ignition Type | Electronic |
| Pressure Rating | 15 to 150 psi |
| Vent Size | 3 in, 4 in |
| Vent Type | Direct/Power |
| Water Connection | 3/4 in MNPT |
| Brand | State Industries |
| Package Width | 12.38 in |
| Package Height | 28 in |
| UNSPSC | 40101825 |
| Alternate Part Number 1 | GTS510UING |
| Package Length | 16.62 in |
| Manufacturer | A. O. Smith |
| UPC | 091196063450 |
| Manufacturer Part Number | 100227717 |
Built-In Temperature Controller and a Factory Installed Power Cord
5 Years Limited
AHRI Certified|ANSI Z21.10.3|CSA Certified|NSF Approved
Commercial and Residential
