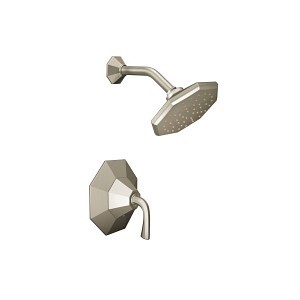

Felicity® Pressure Balanced Shower Trim, ADA, Lever Handle, Brushed Nickel
PartSTMTS342BN
MFGTS342BN
Description
Moen® Shower Trim Only, Series: TS342, Felicity® Posi-Temp®, 2.5 gpm Shower Flow Rate, 1 Handles, Lever Handle, 6-3/4 in H Trim, 1222 Pressure Balanced, Spray Pattern: Rain, -3.6 to 3.6 deg F, Wall Mounting, Metal, Brushed Nickel, Domestic, Commercial/Residential: Commercial
Notice
Price/Availability Accessible On Login- DISCONTINUED ITEM *ALL SALES FINAL* NO RETURNS
- Handle operates counterclockwise through a 90 deg arc with off at 6 o'clock and maximum flow at the 3 o'clock position
- Built on the Moen® M-PACT® common valve system, allowing you to update the faucet style in the future without replacing any plumbing
- Adjustable temperature limit stop to control maximum hot water
- Pressure balancing mechanism maintains selected discharge temperature to +/- 3.6 deg F
| Type | Pressure Balanced Trim |
| Color Family | Nickel |
| Collection | Felicity® |
| ADA Compliance (Yes/No) | Yes |
| Head Included (Yes/No) | Yes |
| Handle Type | Lever |
| Finish/Color | Brushed Nickel |
| Commercial/Residential | Commercial |
| Domestic/Import | Domestic |
| Material | Metal |
| Mounting Type | Wall |
| Number of Handles | 1 |
| Series | TS342 |
| Shower Flow Rate | 2.5 gpm |
| Spray Pattern | Rain |
| Temperature Rating | -3.6 to 3.6 deg F |
| Trim Size | 6-3/4 in H |
| Valve/Cartridge Type | 1222 Pressure Balanced |
| Brand | Moen® |
| Package Width | 9.75 in |
| Package Height | 5.12 in |
| UNSPSC | 30181800 |
| Package Length | 18.5 in |
| Country of Origin | US |
| Manufacturer | Moen |
| UPC | 026508169667 |
| Manufacturer Part Number | TS342BN |
7 in Showerhead, Arm and Flange
5 Years Limited
ADA Compliant|ANSI A117.1|ASME A112.18.1/CSA B125.1|ASSE 1016
Notice
Price/Availability Accessible On Login- DISCONTINUED ITEM *ALL SALES FINAL* NO RETURNS
Moen®Felicity® Pressure Balanced Shower Trim, ADA, Lever Handle, Brushed Nickel
