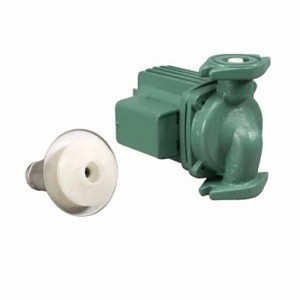

0011 Inline Pump, 1/8 hp, 120 VAC, 1 ph, ODP, Cast Iron
PartTAC0011F42IFC
MFG0011-F4-2 IFC
Description
Taco® Cartridge Circulator Pump, Series: 0011-IFC®, 31 gpm, 31 ft Maximum Head, 1/8 hp, 115 VAC, 1.76 A, 60 Hz, 1 ph, 125 psi Maximum, 3250 rpm Motor, 40 to 230 deg F, 7-1/2 in L x 6-1/2 in H
Price/Availability Accessible On Login
- Integral flow check
- Prevents gravity flow
- Eliminates separate in-line flow check
- Reduces installed cost, easy to service
- Improved performance vs in-line flow checks
- Unique replaceable cartridge Field serviceable
- Unmatched reliability maintenance free
- Quiet, efficient operation
- Direct drive-low power consumption
- Self lubricating, no mechanical seal
- Standard high capacity output compact design
- Acetal body, plunger
- EPDM O-ring seals
- Carbon bearing
- Ceramic shaft
- Aluminum stator housing
- Stainless steel cartridge
- Stainless steel spring
- EPDM O-ring and gaskets
- The 0011-IFC with an Integral Flow Check is designed to reduce installation costs when zoning with 00® circulators
The High Velocity series 0011-IFC includes an Integral Flow Check, saving installation costs while improving system performance. The removable, spring loaded IFC® replaces a separate in-line flow check and prevents gravity flow when the circulator is not operating. Available in Cast Iron or Stainless Steel construction.
| Series | 0011 |
| Material | Cast Iron |
| Power Rating | 1/8 hp |
| Voltage Rating | 120 VAC |
| Phase | 1 ph |
| Enclosure Type | ODP |
| Speed | 1 |
| Amperage Rating | 1.76 A |
| Dimensions | 7-1/2 in L x 6-1/2 in H |
| Flow Rate | 31 gpm |
| Frequency Rating | 60 Hz |
| Horsepower | 1/8 hp |
| Maximum Head | 31 ft |
| Maximum Pressure | 125 psi |
| Motor Speed | 3250 rpm |
| Temperature Rating | 40 to 230 deg F |
| Type | Single Phase |
| Brand | Taco® |
| UNSPSC | 40151504 |
| Manufacturer | Taco |
| UPC | 687752556100 |
| Manufacturer Part Number | 0011-F4-2 IFC |
cULus Listed
