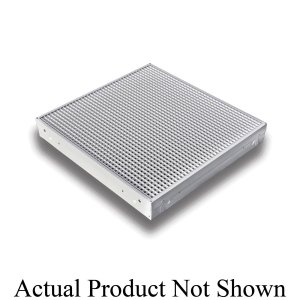

Acrylic Eggcrate T-Bar Return Grille, 24 x 24 in, Insulated Duct Board, Steel, White
PartTRU1130DBR2
MFG1130DBR2
Description
TRUaire™ Return Air Grille, 1-Way Eggcrate Face, Series: 1130R, 24 in W x 24 in H Size, 23-3/4 in Overall Length, 23-3/4 in Overall Width, 3-1/2 in Overall Depth, 2525 cfm Flow Rate, 2.52 sq-ft Effective Area, 1/2 in Blade Spacing, Steel, Pristine White Powder Coated, Import
Price/Availability Accessible On Login
- Acrylic eggcrate face
- Heavy duty steel case
- Seismic support tab
- Plenum box on reverse side
- With 1-1/2 in insulated duct board
- Without deflectors
Our 1130 series is a T-Bar grille with plenum frame. These T-Bar grilles cut installation time by utilizing a unique plenum frame.
| Type | T-Bar Grilles & Diffusers |
| Material | Steel |
| Width | 24 in |
| Height | 24 in |
| Finish/Color | White |
| Blade Spacing | 1/2 in |
| Color | White |
| Domestic/Import | Import |
| Effective Area | 2.52 sq-ft |
| Finish | Pristine White Powder Coated |
| Flow Rate | 2525 cfm |
| Overall Depth | 3-1/2 in |
| Overall Length | 23-3/4 in |
| Overall Width | 23-3/4 in |
| Series | 1130R |
| Size | 24 in W x 24 in H |
| Brand | TRUaire™ |
| Package Width | 23.75 in |
| Package Height | 23.75 in |
| UNSPSC | 40101600 |
| Alternate Part Number 1 | 1130DBR-2 |
| Package Length | 3.125 in |
| Country of Origin | VN |
| Manufacturer | RectorSeal |
| UPC | 803492204068 |
| Manufacturer Part Number | 1130DBR2 |
T-Bar and Ceiling Openings
