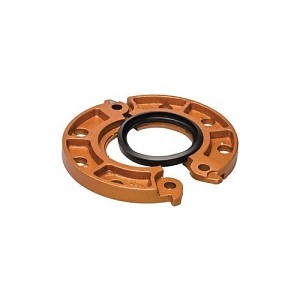

Flange Adapter, 2-1/2 in, Groove x Flange, Ductile Iron, Copper
PartVFCFA212
MFGL024641PP0
Description
Victaulic® Flanged Adapter, Series: 641, 2-1/2 in Nominal, 4 Bolt Holes, 5/8 x 3 in Bolt Hole, 2-5/8 in OD, Up to 300 psi Pressure, 125/150 lb, 0 to 180 deg F, 2.63 in Diameter Hub, Ductile Iron, Domestic
Price/Availability Accessible On Login
- Designed to transition from flanged to grooved piping systems
- Sizes from 2 – 6”, 54.0 – 155.6 mm
- Pressures up to 300 psi, 2068 kPa, 21 bar
| Fitting/Connector Type | Adapter |
| Type | Flange |
| Nominal Size | 2-1/2 in |
| End Style | Groove x Flange |
| Material | Ductile Iron |
| Finish | Copper |
| Potable/Non-Potable | Non-Potable |
| Bolt Hole Size | 5/8 x 3 in |
| Domestic/Import | Domestic |
| Hub Diameter | 2.63 in |
| Number of Bolt Holes | 4 |
| Outside Diameter | 2-5/8 in |
| Pressure Class | 150 lb |
| Pressure Rating | Up to 300 psi |
| Series | 641 |
| Temperature Rating | 0 to 180 deg F |
| Brand | Victaulic® |
| UNSPSC | 40175300 |
| Country of Origin | US |
| Manufacturer | Victaulic |
| UPC | 195150006788 |
| Manufacturer Part Number | L024641PP0 |
(4) Bolts, (4) Nuts and EPDM Gasket
1 year Limited
cUPC Listed|cULus Listed|NSF/ANSI/CAN 61/372|UL 467
For use on types K, L, M and DWV copper tubing
Price/Availability Accessible On Login
