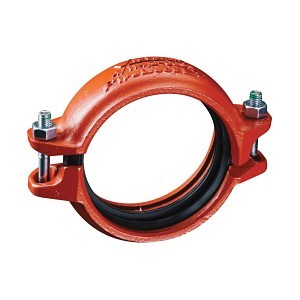

Rigid Coupling, 1-1/4 in, Groove, Ductile Iron, Enamel Painted
PartVFFEZC114
MFGL01209NPE0
Description
Victaulic® FireLock EZ™ Rigid Coupling, Series: 009N, Fitting/Connector Type: Coupling, 1-1/4 in Nominal, 2-3/4 in Thickness, 360 psi, Ductile Iron, Orange Enamel, 1.66 in OD x 5 in W
Price/Availability Accessible On Login
Documentation
- Angled bolt pad provides rigidity
- Joins carbon steel pipe
- Provides a rigid pipe joint designed to restrict axial or angular movement
- Grade "E" Type A EPDM gasket
- With carbon steel oval neck track bolts and nuts
- 360 psi working pressure
| Fitting/Connector Type | Coupling |
| Type | Rigid |
| Nominal Size | 1-1/4 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Enamel Painted |
| Dimensions | 1.66 in OD x 5 in W |
| Pressure Rating | 360 psi |
| Series | 009N |
| Thickness | 2-3/4 in |
| Brand | Victaulic® |
| Manufacturer | Victaulic |
| UPC | 883481237444 |
| Manufacturer Part Number | L01209NPE0 |
cULus Listed|FM Approved|LPCB C104-1a/36|VdS Approved
Price/Availability Accessible On Login
Documentation
Victaulic®Rigid Coupling, 1-1/4 in, Groove, Ductile Iron, Enamel Painted
