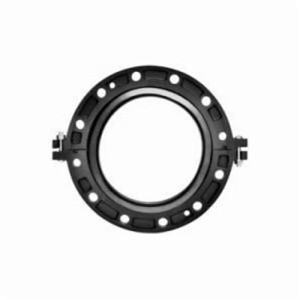

Flange Adapter, 24 in, Groove x Flange, Ductile Iron, Galvanized
PartVFGFA24
MFGW240741GE0
Description
Victaulic® Vic-Flange® Adapter, Series: W741, 24 in Nominal, Flanged x AGS Grooved, 125/150 lb, 300 psi, Ductile Iron, Hot Dipped Galvanized, 24 in OD x 2.74 in W
Notice
Price/Availability Accessible On Login- NON-CANCELLABLE FROM VENDOR, ALL SALES FINAL
- Designed for directly incorporating flanged components with ANSI Class 125-150 bolt hole patterns
- Sizes from 14 – 24″
- DN350 – DN600
- Pressures up to 300 psi
- 2068 kPa
- 21 bar
Style W741 AGS Vic-Flange® Adapter is designed for directly incorporating flanged components with ANSI CL 125/150 bolt hole patterns into an AGS grooved pipe system. Pressure ratings shown are based on standard wall pipe AGS roll grooved in accordance with Victaulic specifications.
| Fitting/Connector Type | Adapter |
| Type | Flange |
| Nominal Size | 24 in |
| End Style | Groove x Flange |
| Material | Ductile Iron |
| Finish | Galvanized |
| Bolt Circle Diameter | 29-1/2 in |
| Bolt Size | 1-1/4 x 5-3/4 in |
| Dimensions | 24 in OD x 2.74 in W |
| Flange Diameter | 32 in |
| Number of Bolts | 20 |
| Pressure Class | 125/150 lb |
| Pressure Rating | 300 psi |
| Series | W741 |
| Brand | Victaulic® |
| UNSPSC | 40171704 |
| Manufacturer | Victaulic |
| UPC | 688304061998 |
| Manufacturer Part Number | W240741GE0 |
ASTM A536 Grade 65-45-12
Notice
Price/Availability Accessible On Login- NON-CANCELLABLE FROM VENDOR, ALL SALES FINAL
Victaulic®Flange Adapter, 24 in, Groove x Flange, Ductile Iron, Galvanized
