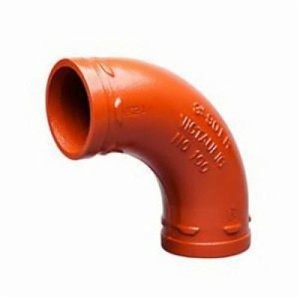

Long Radius 90 deg Elbow, 10 in, Groove, Ductile Iron, Enamel Painted
PartVFPL910
MFGF100100PF0
Description
Victaulic® Pipe Elbow, Long Radius, Series: 100, Fitting/Connector Type: 90 deg Elbow, 10 in Nominal, Grooved, Ductile Iron, Orange Enamel, 10-3/4 in OD
Price/Availability Accessible On Login
Documentation
- Standard fitting pressure ratings conform to ratings of installed coupling
- All fittings supplied with grooves or shoulders for fast installation
- Connects pipe, provides change in direction and adapts sizes or components
- Supplied with Victaulic® OGS grooves
- Exclusively for use with Victaulic® couplings, valves, accessories and pipe which feature ends formed with the Victaulic® OGS groove profile
- 15 in center to end
| Fitting/Connector Type | 90 deg Elbow |
| Type | Long Radius |
| Nominal Size | 10 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Enamel Painted |
| Dimensions | 10-3/4 in OD |
| Series | 100 |
| Brand | Victaulic® |
| UNSPSC | 40172804 |
| Manufacturer | Victaulic |
| UPC | 688304527814 |
| Manufacturer Part Number | F100100PF0 |
Ductile Iron Conforming to ASTM A536 Grade 65-45-12|cULus Listed|FM Approved|LPCB Approved|VdS Approved|CTP
