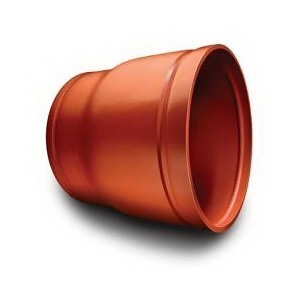

Reducer, 18 x 16 in, Groove, Ductile Iron, Enamel Painted
PartVFPR1816
MFGWH49050PF0
Description
Victaulic® AGS™ Concentric Reducer, Series: W50, Fitting/Connector Type: Reducer, 18 x 16 in Nominal, AGS Grooved, 15 in Length, 350 psi, Ductile Iron, Orange Enamel
Notice
Price/Availability Accessible On Login- NON-CANCELLABLE FROM VENDOR, ALL SALES FINAL
Documentation
- Warning: Victaulic AGS products use a patent-pending groove profile that requires the use of special AGS rolls
- AGS products must not be used on pipe that has been grooved using standard grooving rolls
- Failure to use AGS products on AGS grooved pipe could result in serious personal injury, property damage, joint leakage or joint separation
Victaulic® offers a line of AGS (Advanced Groove System) fittings in sizes from 14 to 60 in or 350 to 1500 mm in a variety of straight and reducing styles. Fittings are cast of durable ductile iron or fabricated from steel pipe to precise tolerances. Victaulic® AGS fittings are pressure rated to conform to the pressure ratings of Victaulic® Style W77 or W07 AGS couplings. All fittings are supplied with AGS grooves to permit fast installation without field preparation. The AGS design permits increased pipe end or component end separation for easy alignment. These fittings are designed for use with Victaulic® W07 (rigid) and W77 (flexible) AGS couplings. Fittings are painted orange enamel with a galvanized finish available as an option.
| Fitting/Connector Type | Reducer |
| Nominal Size | 18 x 16 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Enamel Painted |
| Length | 15 in |
| Pressure Rating | 350 psi |
| Series | W50 |
| Brand | Victaulic® |
| UNSPSC | 40173604 |
| Manufacturer | Victaulic |
| UPC | 688304873317 |
| Manufacturer Part Number | WH49050PF0 |
Ductile Iron Conforming to ASTM A536|Grade 65-45-12
