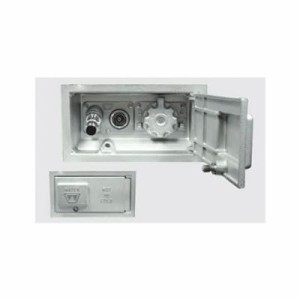

Wall Hydrant, 3/4 in Inlet, FNPT, Polished Chrome
PartWDFHCB67
MFGHCB67-4
Description
Woodford® Hot and Cold Mixer Automatic Draining Wall Hydrant, Freezeless, Series: Model HCB67, 3/4 in Nominal, FNPT, 4 in Wall Thickness, 125 psi, Long Tee Key, 10 in Length, 120 deg F, 12-5/16 in W x 6-1/2 in H, Domestic
Price/Availability Accessible On Login
- Permanent type brass valve body with hemispherical seating surface
- One piece valve plunger accurately controls both flow and drainage with a minimum number of turns and without need for adjustments
- Drains under nozzle away from hands of operator and with a lip to divert water away from building
- Copper casing tubes
- No lead solder on all solder joints
- Hardened stainless steel stem resists damage
- Loose key operates hydrant
- 3/4 in FPT hot and cold inlets
- Check valves are located in each inlet to prevent migration
- Wall clamp furnished
- Nidel® model 50HA backflow preventer with 3/4 in male hose thread
- Field testable
- Two independent check valves
- Drains automatically when hose is removed
- No spray back
The Model HC67 & HCB67 are freezeless hot and cold mixer wall hydrants with automatic draining and hose connection Backflow Prevention. Hydrant drains when shut off, even if hose is attached. The Model HCB67 is enclosed in a flush mounted wall box. Both models are designed for commercial irrigation purposes where outside Hot & Cold water service is required.
| Type | Wall Hydrant |
| Inlet Size | 3/4 in |
| Inlet Type | FNPT |
| Handle Type | Standard |
| Finish | Polished Chrome |
| ADA Compliance (Yes/No) | No |
| Dimensions | 12-5/16 in W x 6-1/2 in H |
| Domestic/Import | Domestic |
| End Style | FNPT |
| Finish/Color | Polished Chrome |
| Length | 10 in |
| Nominal Size | 3/4 in |
| Pressure Rating | 125 psi |
| Specifications | Freezeless |
| Temperature Rating | 120 deg F |
| Wall Thickness | 4 in |
| Brand | Woodford® |
| Package Width | 12 in |
| Package Height | 7 in |
| UNSPSC | 40141760 |
| Package Length | 12 in |
| Country of Origin | US |
| Manufacturer | Woodford Manufacturing |
| UPC | 671090020416 |
| Manufacturer Part Number | HCB67-4 |
Chrome Plated Box and Door
5 Years Limited
ASSE 1052
For commercial irrigation purposes where outside hot and cold water service is required
