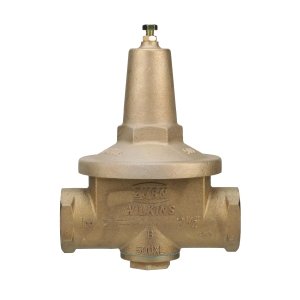

Pressure Reducing Valve, 2-1/2 in, FNPT, Bronze
PartWKN500XL212
MFG212-500XL
Description
Zurn® Wilkins Pressure Reducing Valve, Lead Free, Series: 500XL, 2-1/2 in Nominal, FNPT x FNPT Without Union, 300 psi, 140 deg F, Media: Water, 10 in Inlet to Outlet Length, Cast Bronze Body, Cast Bronze Stem/300 Stainless Steel Seat/Oil Tempered Wire Spring Trim, Buna Nitrile/EPDM Elastomers/Natural Vulcanized Fiber/Acetal (Delrin™500) Cap Gasket, 14-1/2 in H, Import
Price/Availability Accessible On Login
- Lead free
- Short lay length and compact design allow it to install in tight spaces
- Highly durable, threaded bell resists corrosion and provides easy access to cartridge internals
The 2-1/2" 500XL Pressure Reducing Valve works effectively for industrial water lines and commercial irrigation systems with high-flow rate capacity and low falloff. The balanced piston design enables the regulator to respond seamlessly to changes in the system flow demand, ultimately providing vital protection from inlet pressure changes. The direct-acting integral bypass design prevents buildup of excessive system pressure caused by thermal expansion. The all-bronze body and threaded bell provide superior corrosion resistance and easy access to the internal system. You will save valuable installation time and labor costs.
| Nominal Size | 2-1/2 in |
| End Style | FNPT |
| Material | Bronze |
| Body Material | Bronze |
| Dimensions | 14-1/2 in H |
| Domestic/Import | Import |
| Height | 14.4 in |
| Inlet to Outlet Length | 10 in |
| Length | 10 in |
| Media | Water |
| Pressure Range | 300 psi |
| Pressure Rating | 300 psi |
| Series | 500XL |
| Softgoods Material | Buna Nitrile/EPDM Elastomers/Natural Vulcanized Fiber/Acetal (Delrin™500) Cap Gasket |
| Temperature Rating | 140 deg F |
| Trim Material | Cast Bronze Stem/300 Stainless Steel Seat/Oil Tempered Wire Spring |
| Width | 8 in |
| Brand | Zurn® Wilkins |
| Package Width | 8 in |
| Package Height | 14.4 in |
| UNSPSC | 40141652 |
| Package Length | 10 in |
| Country of Origin | CN |
| Manufacturer | Zurn Water |
| UPC | 612052067575 |
| Manufacturer Part Number | 212-500XL |
1 Year
ANSI B1.20.1|ASTM B 584|ASTM A 229|ASSE 1003|City of Los Angeles Approved|CSA Certified|FDA Approved|IAPMO Listed|ANSI/NSF 61
Commercial and Industrial
