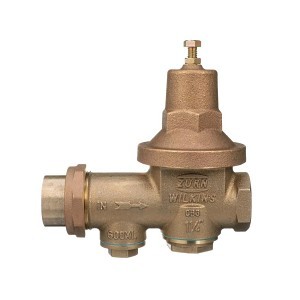

Pressure Reducing Valve, 1-1/4 in, FNPT Union x FNPT, Bronze
PartWKN600XLHR114
MFG114-600XLHR
Description
Zurn® Wilkins Pressure Reducing Valve, Lead Free, Series: 600XL, 1-1/4 in Nominal, FNPT Union x FNPT, 300 psi, 140 deg F, Media: Water, 7-1/8 in Inlet to Outlet Length, Cast Bronze Body, 300 Stainless Steel Seat Trim, Buna Nitrile/EPDM Elastomers/Natural Vulcanized Fiber/Acetal (Delrin™) Cap Gasket, 8 in H
Price/Availability Accessible On Login
- Fiber union gasket ensures fast installation
- Durable construction ensures low maintenance and lifecycle costs
- Inlet pressure changes with balanced design features to protect the system
- Threaded bell provides easier access than bolted on bells
The 1-1/4" 600XLHR Pressure Reducing Valve handles sandy, debris-laden water systems for high-flow capacity in residential, commercial, and new construction applications. It includes a spring range of 75 psi to 125 psi, factory set at 85 psi. It meets compliance with universal plumbing code. The stainless steel strainer includes a standard 20 mesh configuration and separate-access cover for simplified cleaning, while the bronze threaded bell provides superior corrosion-resistance and speeds access to the internals – together, cutting labor time up to 50%. Internal components of the 600XL utilize a balanced design, providing accurate downstream pressure without consideration of the incoming pressure.
| Nominal Size | 1-1/4 in |
| End Style | FNPT Union x FNPT |
| Material | Bronze |
| Body Material | Cast Bronze |
| Dimensions | 8 in H |
| Domestic/Import | Domestic |
| Inlet to Outlet Length | 7-1/8 in |
| Media | Water |
| Pressure Range | 300 psi |
| Series | 600XL |
| Softgoods Material | Buna Nitrile/EPDM Elastomers/Natural Vulcanized Fiber/Acetal (Delrin™) Cap Gasket |
| Temperature Rating | 140 deg F |
| Trim Material | 300 Stainless Steel Seat |
| Brand | Zurn® Wilkins |
| Package Width | 3.31 in |
| Package Height | 4.8 in |
| UNSPSC | 40141652 |
| Package Length | 6.44 in |
| Country of Origin | US |
| Manufacturer | Zurn Water |
| UPC | 612052094038 |
| Manufacturer Part Number | 114-600XLHR |
20 Mesh Strainer Screen
1 year
ASTM B 584|ASSE® 1003 Listed|City of Los Angeles Approved|CSA® Certified|FDA Approved|IAPMO® Listed|ANSI/NSF 61/372|UPC Listed
Commercial and Residential
