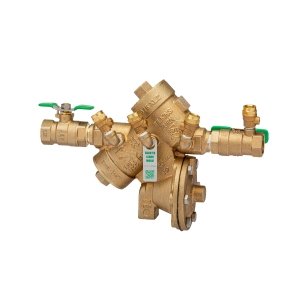

975XL2 Reduced Pressure Backflow Preventer, 3/4 in, FNPT, Bronze
PartWKN975XL2TCU34
MFG34-975XL2TCU
Description
Zurn® Wilkins Backflow Preventer, Series: 975XL2, 3/4 in Nominal, FNPT, 175 psi, 180 deg F, Reduced Pressure Backflow, Full Port, Media: Water, Bronze Body, 16-1/8 in L
Price/Availability Accessible On Login
- Test cocks pointed up for easy installation close to a wall
- Wye pattern design reduces installation time and costs
- Entire unit serviceable in-line for high efficiency
The 3/4" 975XL2TCU Reduced Pressure Principle Backflow Assembly is used in high hazard, potable water applications for protection against both backsiphonage and backpressure of contaminated water into the potable water supply. The wye pattern, bronze body test cocks are oriented face up and positioned vertically for easy installation close to a wall. The convenient separate access to the relief valve and each check valve reduces labor costs and repair time. The 975XL2TCU is favored by installers around the world, and is the simplest, best performing, and most reliable backflow preventer in the market today.
| Nominal Size | 3/4 in |
| End Style | FNPT |
| Body Material | Bronze |
| Series | 975XL2 |
| Backflow Type | Reduced Pressure |
| Dimensions | 16-1/8 in L |
| Height | 6.3 in |
| Length | 13 in |
| Media | Water |
| Port Type | Full |
| Pressure Rating | 175 psi |
| Temperature Rating | 180 deg F |
| Width | 10 in |
| Brand | Zurn® Wilkins |
| Package Width | 10 in |
| Package Height | 6.3 in |
| UNSPSC | 40141600 |
| Package Length | 13 in |
| Country of Origin | US |
| Manufacturer | Zurn Water |
| UPC | 612052097015 |
| Manufacturer Part Number | 34-975XL2TCU |
Test Cocks Up
Approved by the Foundation for Cross Connection Control and Hydraulic Research at the University of Southern California|ANSI B1.20.1|ASSE 1013|ASTM B584|AWWA C511|CSA B64.4|cUPC Listed|IAPMO R and T Listed|ANSI/NSF 372/67-G
Potable Water Lines in Fire Protection Systems
