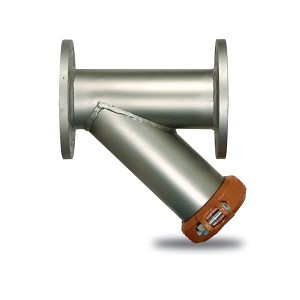

77F Strainer, 2-1/2 in, Flange, 500 psi, 304/304L Stainless Steel
PartWTT77FSS212
MFG0821110
Description
WATTS® Wye Strainer, Series: 77F-SS, 2-1/2 in Nominal, 10 in Overall Length, 12-15/16 in Overall Height, Flange, 1/2 in NPT Blow-Off, EPDM, 304 Stainless Steel Body
Price/Availability Accessible On Login
- Wye pattern
- Flanged
Series 77F-SS, 77G-SS Stainless Steel, Flanged and Grooved, Wye-Pattern Strainers feature a wye-pattern, stainless steel body with flanged (Model 77F-SS) or grooved (Model 77G-SS) connections, stainless steel screen, ductile iron or epoxy-coated ductile iron (FDA Model) retainer cap with EPDM gasket, grooved coupling, and blow-down outlet. Series 77F-SS, 77G-SS is lightweight, corrosion-resistant, and has a self-cleaning feature. It is suitable for use in potable water and food applications in compliance with NSF-61 and FDA requirements. Maximum Pressure (non-shock): 200psi (13.8 bar) at 150 deg F (66 deg C) WOG.
| Nominal Size | 2-1/2 in |
| End Style | Flange |
| Pressure Rating | 500 psi |
| Material | 304/304L Stainless Steel |
| Domestic/Import | Import |
| Series | 77F |
| Blow-Off Size | 1/2 in NPT |
| Body Material | 304 Stainless Steel |
| Connection Type | Flanged |
| Overall Height | 12-15/16 in |
| Overall Length | 10 in |
| Softgoods Material | EPDM |
| Type | Wye-Pattern |
| Brand | WATTS® |
| Package Width | 11.5 in |
| Package Height | 11 in |
| UNSPSC | 40142505 |
| Alternate Part Number 1 | 77F-SS |
| Package Length | 7 in |
| Country of Origin | US |
| Manufacturer | Watts Water Technologies |
| UPC | 098268802160 |
| Manufacturer Part Number | 0821110 |
Limited
ANSI B16.1 Dimensions and Drilled Flange Holes|ASTM A-312 Body|ASTM A-36 Flanges|ASTM A-276 Screen|US Green Building Council Member
Commercial, Industrial, Potable Water and Food
Price/Availability Accessible On Login
WATTS®77F Strainer, 2-1/2 in, Flange, 500 psi, 304/304L Stainless Steel
