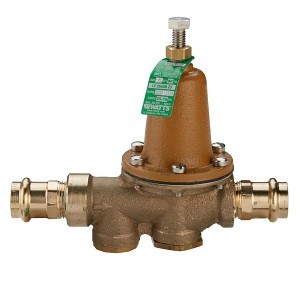

Pressure Reducing Valve, 3/4 in, Press, Bronze
PartWTTLF25AUB34PRS
MFG0125572
Description
WATTS® Pressure Reducing Valve, Standard Capacity, Series: LF25AUB-Z3, 3/4 in Nominal, 25 to 75 psi, 33 to 160 deg F, Media: Water, Copper Silicon Alloy Body, EPDM Trim, EPDM Diaphragm, 7 in H, Domestic
Notice
Price/Availability Accessible On Login- DISCONTINUED ITEM *ALL SALES FINAL* NO RETURNS
Replacement Item
Looking for an alternate option? Check out the replacement item using the link below- Serviceable in line
- A water saving test program concluded that reducing the supply pressure from 80 to 50 psi resulted in a water savings of 30%
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Integral stainless steel strainer removable for cleaning
- Replaceable seat module
- Bypass feature controls thermal expansion pressure
- High temperature resistant reinforced diaphragm for hot water
- Industry-trusted design with proven track record for longevity, reliability and flow performance
- The bypass feature will not prevent the pressure relief valve from opening on the hot water supply system with pressure above 150 psi
- With press inlet x press outlet (non union)
- Sealed spring cage with stainless steel cage screws
- 50 psi standard reduced pressure
- Viega ProPress® connections are factory-installed fitting on each end of the approved/certified assembly
This 3/4 in lead free cast copper silicon water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, with Viega ProPress® connections and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 deg F. The standard pressure setting is 50 psi with maximum working pressure at 300 psi.
| Nominal Size | 3/4 in |
| End Style | Press |
| Material | Bronze |
| Body Material | Cast Copper Silicon Bronze |
| Dimensions | 7 in H |
| Domestic/Import | Domestic |
| Media | Water |
| Pressure Range | 25 to 75 psi |
| Series | LF25AUB |
| Softgoods Material | EPDM Diaphragm |
| Temperature Rating | 33 to 160 deg F |
| Trim Material | EPDM |
| Type | Standard Capacity |
| Brand | WATTS® |
| Package Width | 8.5 in |
| Package Height | 9.5 in |
| UNSPSC | 40141652 |
| Alternate Part Number 1 | LF25AUB-Z3 |
| Package Length | 4.5 in |
| Country of Origin | US |
| Manufacturer | Watts Water Technologies |
| UPC | 098268128697 |
| Manufacturer Part Number | 0125572 |
1 Year
ASSE 1003|ANSI A112.26.2|CSA B356|IAPMO Listed|MIL-V-1814B Type 1|NSF/ANSI 61-G|Southern Standard Plumbing Code|UPC Listed | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
