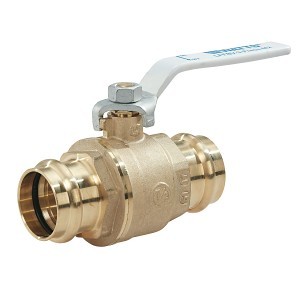

2-Piece Ball Valve, 2-1/2 in, Press, Full Port, Plated Brass Ball, Brass
PartWTTLFFBVP212
MFG88005499
Description
WATTS® Ball Valve, 2-Piece, Series: LFFBV-3-PRESS-M2, 2-1/2 in Nominal, Press, 250 psi WOG, 32 to 250 deg F, Full Port, Media: Water, 2.421 in Orifice, Lever Handle Actuator, Chrome Plated Brass Ball, 6-1/2 in Inlet to Outlet Length, 4.61 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE/EPDM, Import
Price/Availability Accessible On Login
- Bottom loaded blowout proof stem with packing nut
- Lead free brass body rated NSF61-8
This 2-1/2 in lead free two-piece, full port, ball valve with integral press end fittings is designed for use in plumbing, heating, and potable water applications. It features a lead free brass body, adjustable packing gland, and bottom-loaded blowout proof stem. It is made with integral ASTM-B88 compliant press end connections that are designed for types K, L and M hard copper tubing. The press fitting is rated to 250 psi CWP up to 210 deg F.
| Nominal Size | 2-1/2 in |
| End Style | Press |
| Port Type | Full |
| Construction | 2-Piece |
| Material | Brass |
| Ball Material | Plated Brass |
| Actuator Type | Lever Handle |
| Body Material | Forged Brass |
| Domestic/Import | Import |
| Inlet to Outlet Length | 6-1/2 in |
| Media | Water |
| Orifice Size | 2.421 in |
| Pressure Rating | 250 psi WOG |
| Series | LFFBV-3-PRESS-M2 |
| Softgoods Material | PTFE/EPDM |
| Temperature Rating | 32 to 250 deg F |
| Top to Inlet Center | 4.61 in |
| Trim Material | Brass/PTFE |
| Brand | WATTS® |
| Package Width | 7.09 in |
| Package Height | 4.53 in |
| UNSPSC | 40141607 |
| Alternate Part Number 1 | 2-1/2 LFFBV-3-PRESS-M2 |
| Package Length | 12.7 in |
| Country of Origin | CN |
| Manufacturer | Watts Water Technologies |
| UPC | 098268153361 |
| Manufacturer Part Number | 88005499 |
Limited
ASTM-B88|NSF/ANSI 372/61/14|cUPC Listed|UL Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
For Press Piping Applications, Commercial, Residential, Industrial plumbing and Hydronics
Price/Availability Accessible On Login
WATTS®2-Piece Ball Valve, 2-1/2 in, Press, Full Port, Plated Brass Ball, Brass
