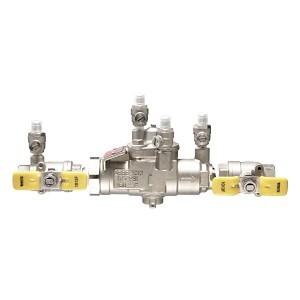

SS009 Reduced Pressure Backflow Preventer, 3/4 in, FNPT, 316/316L Stainless Steel
PartWTTSS009QT34
MFG0062968
Description
WATTS®, 0062968, Reduced Pressure Zone Assembly, Series: SS009, 3/4 in Nominal, NPT End Style, 175 psi Pressure, 33 to 180 deg F, Quarter-Turn Ball Valve Ball Valve/Gate Valve, Full Port, 316 Stainless Steel Body, 10-3/4 in L x 5 in H Dimensions
Notice
Price/Availability Accessible On Login- DISCONTINUED ITEM *ALL SALES FINAL* NO RETURNS
Replacement Item
Looking for an alternate option? Check out the replacement item using the link below- Quarter-turn full port resilient seated ball valve shutoffs
- Replaceable seats for an economical repair
- Investment cast 316 stainless steel assembly for corrosion resistance
- All wetted valve components test cocks, ball valve shut-offs, pipe nipples, body and cover and check modules are made from lead free stainless steel or plastic construction
- Bolted on, top entry single access cover for easy of maintenance
- Modular check construction featuring non-reversible checks with captured springs for simplified servicing
- Top mounted Vandal-resistant EZ-TC test cocks provide easy access for testing
- Stainless steel EZ-TC test cocks include dust covers to protect the threads from dirt and dust
- EZ-TC Test cocks eliminate the need for tools and test fitting
- True line sized check modules open further allowing dirt and debris to pass freely through the valve reducing fouling problems
- Check and relief Valve seats are replaceable without the use of special tools
- Internal relief valve for right and left hand installation
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
Series SS009QT Stainless Steel Reduced Pressure Zone Assemblies provide protection of the potable water supply in accordance with national plumbing codes and water authority requirements. Series SS009 can be used in a variety of health hazard installations whenever the downstream liquid is of a composition which may damage bronze material or it is desirable to eliminate trace elements of lead and copper. Typical applications are: Industrial or plant use, medical/diagnostic equipment, reverse osmosis systems, carbonated beverage machines, breweries/distillers, paper and pulp industry, chemical plants and aggressive atmospheres. The SS009 series features two in-line independent check valves, captured springs, replaceable check seats, corrosion resistant internal parts and a hydraulically operated differential pressure relief valve. All sizes are constructed with NPT body connections and are standardly furnished with Vandal-resistant EZ-TC Test Cocks. Series SS009QT's are furnished with 316 Stainless Steel, full port, investment cast, quarter turn ball valve shutoffs with 304 Stainless Steel tee handles.
| Nominal Size | 3/4 in |
| End Style | FNPT |
| Body Material | 316/316L Stainless Steel |
| Series | SS009 |
| Ball Valve/Gate Valve Type | Quarter-Turn Ball Valve |
| Dimensions | 10-3/4 in L x 5 in H |
| Domestic/Import | Domestic |
| Port Type | Full |
| Pressure Rating | 175 psi |
| Temperature Rating | 33 to 180 deg F |
| Brand | WATTS® |
| UNSPSC | 40141600 |
| Alternate Part Number 1 | SS009M3-QT |
| Country of Origin | US |
| Manufacturer | Watts Water Technologies |
| UPC | 098268817102 |
| Manufacturer Part Number | 0062968 |
(2) Stainless Steel Check Valves, Stainless Steel Check Seats, Hydraulically-Operated Relief Valve and Stainless Steel Vandal-Resistant Ball Valve Test Cocks
1 Year Limited
ASSE 1013|AWWA C511-92|CSA B64.4|NSF 61|USC Manual 9th Edition|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
