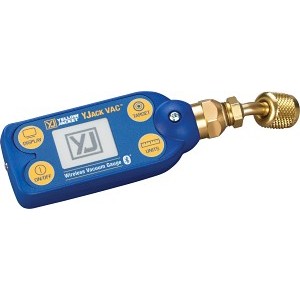

YJACK VAC Wireless Vacuum Gauge, 1 to 760000 um Measuring, 45 deg x 1/4 in Quick Connect Connection, +/-20 % Accuracy
PartYEL67066
MFG67066
Description
Yellow JacketĀ®, 67066, Vacuum Gauge, Wireless, Series: YJACK VAC, 1 to 760000 um Measuring, 45 deg x 1/4 in Quick Connect Connection, +/-20 % Accuracy, 32 to 104 deg F
Price/Availability Accessible On Login
- Wireless system vacuum measurement from atmospheric pressure to 1 micron
- Robust sensor resists pressure shock and oil contamination
- 45 deg x 1/4 in quick-coupler fitting for versatile system attachment
- Electronic paper display for clear visibility - even in direct sunlight
- Bluetooth 4.2 compliant low energy radio
- 400 ft line of sight signal range
- Compatible with YJACK VIEW App and P51-870 TITAN devices (firmware version v3.0 or later)
- Proof Pressure, 450 psi (31 bar)
- Vacuum Reading Range, 1 to 760,000 microns with the YJACK VIEW App (1 to 99,999 microns on integrated display)
- Accuracy, +/- 20% of reading (from 10 to 25,000 microns)
- Storage Temperature, -4 degF to 122 degF
- Up to 240-hour battery life with power saving mode (2x AAA included)
| Type | Gauge |
| Accuracy | +/-20 % |
| Connection Type | 45 deg x 1/4 in Quick Connect |
| Measuring Range | 1 to 760000 um |
| Series | YJACK VAC |
| Temperature Rating | 32 to 104 deg F |
| Brand | Yellow JacketĀ® |
| Package Width | 2.5 in |
| Package Height | 10.25 in |
| Package Length | 5.13 in |
| Country of Origin | US |
| Manufacturer | Ritchie Engineering Co |
| UPC | 686800670669 |
| Manufacturer Part Number | 67066 |
(2) AAA Batteries
2 Years
4.2 Compliant
Price/Availability Accessible On Login

Yellow Jacket®YJACK VAC Wireless Vacuum Gauge, 1 to 760000 um Measuring, 45 deg x 1/4 in Quick Connect Connection, +/-20 % Accuracy
