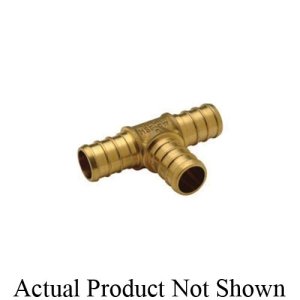

Tee, 1 x 1/2 in, Crimp PEX, Brass
PartZRPT1X12
MFGQQT553GX
Description
Zurn® Zurn PEX® Crimp Tee, Lead Free, 1 x 1 x 1/2 in Nominal, Barb, 2.22 in Length, 160 psi, 73 deg F, Brass, 1.69 in H
Price/Availability Accessible On Login
- Easy installation
Zurn® PEX® XL-Low Lead Brass Barb Tee. The QQT___GX is used to branch off the main line or change direction. Manufactured from EcoBrass®,C69300. These fittings, as a system with Zurn® PEX® tube, are pressure rated at 160 psi at 73 deg F, 100 psi at 180 deg F and 80 psi at 200 deg F.
| Fitting/Connector Type | Tee |
| Nominal Size | 1 x 1/2 in |
| Material | Brass |
| End Style | Crimp PEX |
| Dimensions | 1.69 in H |
| Height | 0.9415 in |
| Length | 2.279 in |
| Pressure Rating | 160 psi |
| Temperature Rating | 200 deg F |
| Width | 1.688 in |
| Brand | Zurn® |
| UNSPSC | 40141700 |
| Manufacturer | Zurn Water |
| UPC | 084169016584 |
| Manufacturer Part Number | QQT553GX |
Limited
ASTM F877|ASTM F1807|CSA B137.5|NSF/ANSI 14/61|UL 1821
Used in Hot and Cold Potable Water Applications
Price/Availability Accessible On Login
Zurn®Tee, 1 x 1/2 in, Crimp PEX, Brass
