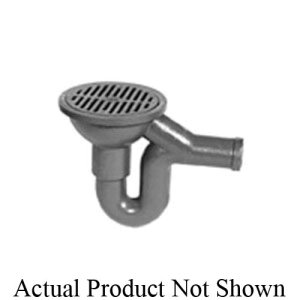

Z742 Trap Primer Floor Drain, 4 in Outlet, Spigot, 12 in Round Cast Iron Top
PartZURZ7424
MFGZ742-4SP
Description
Zurn® Trap Drain, Light Duty, Series: Z742, 4 in Outlet, Spigot, Cast Iron Drain, Dura Coated, 15 in H
Price/Availability Accessible On Login
- 40 sq-in grate open area
The Zurn® Z742 8 in, 10 in or 12 in Dia top drain has a Dura-Coated cast iron body with integral double wall trap and side outlet, with ball float type backwater valve, internal bronze cleanout and light-duty loose slotted grate.
| Type | Trap Primer Body & Top |
| Outlet Size | 4 in |
| Connection Type | Spigot |
| Grid Size | 12 in |
| Grid Shape | Round |
| Grid Material | Cast Iron |
| Series | Z742 |
| Vandal Resistant (Yes/No) | No |
| Dimensions | 15 in H |
| Drain Material | Cast Iron |
| Finish | Cast Iron |
| Brand | Zurn® |
| UNSPSC | 40141759 |
| Manufacturer | Zurn Water |
| UPC | 670240178649 |
| Manufacturer Part Number | Z742-4SP |
Integral Double Wall Trap, Side Outlet, with Ball Float Type Backwater Valve, Internal Bronze Cleanout, 12 in Dia Dura-Coated Cast Iron Top and Light-Duty Loose Slotted Grate
1 Year Limited
ASTM A48 Class 25|ASME Specified
Price/Availability Accessible On Login

Zurn®Z742 Trap Primer Floor Drain, 4 in Outlet, Spigot, 12 in Round Cast Iron Top
