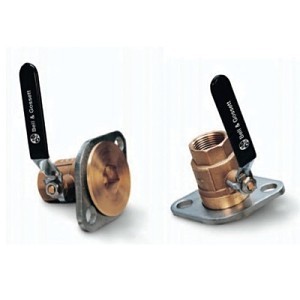

Isolating Pump Flange Set, 3/4, FNPT, Brass
PartBAG101221
MFG101221LF
Description
Bell & Gossett Isolation Flange, 3/4 in Nominal, FNPT, 150 psig, 200 deg F, Handle Actuator, Brass Body, Brass Trim, PTFE Packing Seat Ring, Polished Chrome, 4-7/16 in Flange, 2-27/64 in Inlet to Outlet Length x 2 in Top to Inlet Center Valve
Price/Availability Accessible On Login
- Free floating flange allows easy alignment and installation of pumps
- Isolates the circulator so you don't need to drain the entire system
- 50 state lead free
- Suitable for use with NRF/NBF/SSF, Series PL-30, PL-36, PL-55,Series 100, PR and LR B and G circulators
- Construction: Lead-free brass valve body, chrome plated steel flange and lead-free brass ball
The isolation flange is a combination of an isolation ball valve and a companion flange for circulators. The isolation flange allows easy service or replacement of the circulator without the need to drain the system. The isolation flange fits the Bell & Gossett NRF/NBF/SSF wet rotors, Series PL, Series 100, PR and LR circulators.
| Type | Isolating |
| Pipe Size | 3/4 in |
| End Style | FNPT |
| Material | Brass |
| Actuator Type | Handle |
| Body Material | Brass |
| Dimensions | 4-7/16 in Flange, 2-27/64 in Inlet to Outlet Length x 2 in Top to Inlet Center Valve |
| Finish | Polished Chrome |
| Nominal Size | 3/4 in |
| Pressure Rating | 150 psi |
| Softgoods Material | PTFE Packing Seat Ring |
| Temperature Rating | 200 deg F |
| Trim Material | Brass |
| Brand | Bell & Gossett |
| UNSPSC | 40141600 |
| Manufacturer | Xylem |
| UPC | 683328231662 |
| Manufacturer Part Number | 101221LF |
CSA Certified|ANSI/NSF 372
