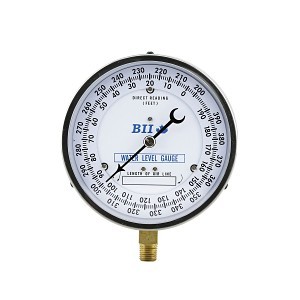

Water Test Gauge, 4-1/2 in Dial, 0 to 390 ft, 1/4 in MNPT Bottom Connection
PartBOSPG45WL
MFGPG45-WL
Description
Boshart Industries Water Level Gauge, 0 to 390 psi in H2O Pressure, 1/4 in MNPT Connection, 4-1/2 in Diameter Dial, 3-2-3% Grade B Accuracy, Graduations: 0.2 psi, Liquid Filled: No, -40 to 140 deg F, Lower Mounting, 304 Stainless Steel, 30 mm W x 150 mm H
Price/Availability Accessible On Login
Documentation
- The gauge and air line reaching well bottom are charged with air
- The pressure required to permit air to escape from the end of the air line is a measure of the head of water above the end of the air line
- Length of air line may be set on adjustable dial to permit reading water level in feet below the ground level
Type | Water Test |
Fill Type | Dry |
Connection Size | 1/4 in |
Mounting Type | MNPT Bottom |
Pressure Range | 0 to 390 ft |
Dial Diameter | 4-1/2 in |
Accuracy | 3-2-3% Grade B |
Dimensions | 30 mm W x 150 mm H |
Graduations | 0.2 psi |
Liquid Filled | No |
Material | 304 Stainless Steel |
Temperature Rating | -40 to 140 deg F |
Brand | Boshart Industries |
Package Width | 11.22 in |
Package Height | 8.27 in |
UNSPSC | 41112412 |
Package Length | 11.22 in |
Country of Origin | CN |
Manufacturer | Boshart Industries |
UPC | 777808055050 |
Manufacturer Part Number | PG45-WL |
ASME B40.1|NSF/ANSI 372|CSA Approved
