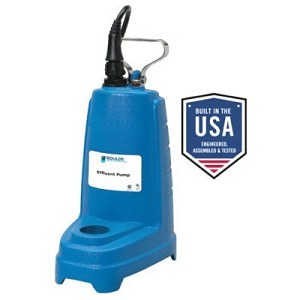

PE Automatic Effluent Pump, 1/3 hp, 120 VAC, 1 ph
PartGLDPE31P1
MFGPE31P1
Description
Goulds Submersible Effluent Pump, Series: PE Series, 53 gpm Maximum, Automatic, 1-1/2 in NPT Outlet, 25 ft TDH Maximum Head, 1/3 hp, 115 VAC, 12 A, 60 Hz Frequency, 1 ph ph, 3000 rpm Motor, SJTW 16/3 AWG 20 ft Cord, Thermoplastic Impeller, 104 deg F Continuous, Heavy Duty Ball Bearing, Cast Iron, 9.6 in L x 6.4 in W x 12.1 in H Dimensions, Domestic
Price/Availability Accessible On Login
- Corrosion resistant construction
- Thermoplastic cover
- Upper sleeve and lower heavy duty ball bearing construction
- Motor is permanently lubricated for extended service life
- Powered for continuous operation
- All ratings are within the working limits of the motor as recommended by the motor manufacturer
- Quick-disconnect power cord, 20 ft standard length, heavy duty 16/3 AWG SJTW with NEMA 5-15P, 3 prong, 115 V grounding plug
- Complete unit is heavy duty, portable and compact
- Mechanical seal is carbon, ceramic, Buna-N and stainless steel
- Stainless steel fasteners
- Built-in thermal overload protection with automatic reset
- Class B insulation
- Oil filled design
- High strength carbon steel shaft
| Type | Automatic |
| Series | PE |
| Power Rating | 1/3 hp |
| Voltage Rating | 120 VAC |
| Phase | 1 ph |
| Amperage Rating | 12 A |
| Automatic/Non Automatic | Automatic |
| Bearing Type | Heavy Duty Ball |
| Cord Type | 20 ft 16/3 AWG SJTW |
| Dimensions | 9.6 in L x 6.4 in W x 12.1 in H |
| Domestic/Import | Domestic |
| Frequency Rating | 60 Hz |
| Horsepower | 1/3 hp |
| Impeller Type | Thermoplastic |
| Material | Cast Iron |
| Maximum Flow Rate | 53 gpm |
| Maximum Head | 25 ft |
| Motor Speed | 3000 rpm |
| Outlet Size | 1-1/2 in |
| Temperature Rating | 104 deg F Continuous |
| Brand | Goulds |
| UNSPSC | 40151500 |
| Country of Origin | US |
| Manufacturer | Xylem |
| UPC | 697666225023 |
| Manufacturer Part Number | PE31P1 |
Oil-Filled Shaded-Pole Motor
cCSAus File #LR38549|CSA 22.2 108|UL 778
For mound systems, effluent/dosing systems, low pressure pipe systems, basement draining and heavy duty sump/dewatering
