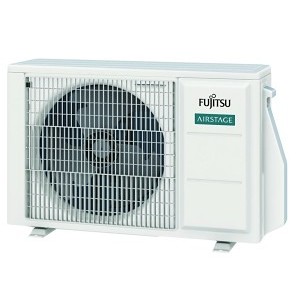

Outdoor Mini Split, 12.5 HSPF, 12 Kbtu/hr Heating, 9 Kbtu/hr Cooling, 208-240 VAC, 22.5 SEER, 13.6 EER
PartFJSAOUH09LUAS1
MFGAOUH09LUAS1
Description
Airstage, AOUH09LUAS1, Outdoor Unit, Series: AOUH, 9000 Btu/hr Nominal, 12000 Btu/hr Heating, 9000 Btu/hr Cooling, 208 to 230 V, 1 ph, 60 Hz Power Source, 259, 288, 318 cfm Flow Rate, 13.6 EER, 22.5 SEER, 12.5 HSPF, R-410A Refrigerant, 29, 32, 34 dBA Sound Level, 9-5/8 in H x 22-7/16 in W x 22-7/16 in D Dimensions, Import
Notice
Price/Availability Accessible On Login- C-20 LICENSE & EPA CERTIFICATE REQUIRED FOR PURCHASE OF THIS PRODUCT
- Thermostat setting automatically changes according to the temperature to avoid unnecessary cooling and heating.
- Automatically alternates between heating or cooling if the room temperature falls 4˚F below the set temperature when cooling or rises 4˚F above set temperature when heating.
- System starts in high fan speed and automatically adjusts downward as room begins to reach set temperature.
- Redirects airflow automatically with seven position up and down motion which can be set to auto swing.
- Following a power failure, systems will automatically restart in the same operating mode as before, once power has been restored.
- This mode gives priority to reducing the level of humidity in the room, in conjunction with lowering the temperature.
- An extra quiet fan speed to make sure you are not disturbed.
- Allows you to set on/off time twice a day and a different on/off time by day.
- Indoor coil will warm prior to fan operating, preventing cold air during heating mode.
- Delivers 100% of rated heating capacity at +5°F (-15°C).
Compact outdoor unit and extended line set lengths add flexibility and simplifies the installation process.
| Indoor/Outdoor | Outdoor |
| Voltage Rating | 208-240 VAC |
| HSPF Rating | 12.5 |
| SEER Rating | 22.5 |
| EER Rating | 13.6 |
| Heating Capacity | 12 Kbtu/hr |
| Cooling Capacity | 9 Kbtu/hr |
| Dimensions | 9-5/8 in H x 22-7/16 in W x 22-7/16 in D |
| Domestic/Import | Import |
| Flow Rate | 259, 288, 318 cfm |
| Nominal Capacity | 9000 Btu/hr |
| Power Source | 208 to 230 V, 1 ph, 60 Hz |
| Refrigerant Type | R-410A |
| Series | AOUH |
| Sound Level | 29, 32, 34 dBA |
| Brand | Airstage |
| Package Width | 37 in |
| Package Height | 23.69 in |
| Package Length | 14.75 in |
| Country of Origin | TH |
| Manufacturer | Fujitsu General |
| Manufacturer Part Number | AOUH09LUAS1 |
Handheld remote control
7 Years Compressor/5 Years Parts
AHRI Certified|ISO9001|ISO14001|cETLus Listed|ASTM B117|RoHS Compliant|Energy Star Compliant|California 2022 Title 24 requirements
For Residential and Light Commercial Applications
Notice
Price/Availability Accessible On Login- C-20 LICENSE & EPA CERTIFICATE REQUIRED FOR PURCHASE OF THIS PRODUCT
AirstageOutdoor Mini Split, 12.5 HSPF, 12 Kbtu/hr Heating, 9 Kbtu/hr Cooling, 208-240 VAC, 22.5 SEER, 13.6 EER
