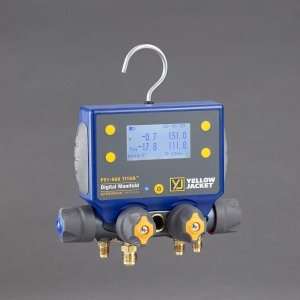

TITAN® Digital Manifold
PartYEL40860
MFG40860
Description
Yellow Jacket®, 40860, Manifold, Digital, Series: TITAN®, Domestic
Price/Availability Accessible On Login
- Measures high and low side pressures and temperatures
- Displays vapor and liquid saturation temperatures
- System superheat and subcooling calculations
- On board data logging; export to your computer through USB or to your phone via the ManTooth app
- Pressure hold mode displays rate of change for both vacuum and positive pressure measurements
- 4-way TITAN valve block
- 126 refrigerant profiles stored in the instrument including new blends not currently on the Refprop database
- Backlit display with auto-dimming
- Auto shut-off
- Bluetooth capability for use with ManTooth app
- Optional vacuum sensor available (included with P51-870 TITAN )
- Vacuum measurements, targets and leak testing
- High and low alarms
- Re-chargeable battery with battery life indicator
- Continuous use no back light, 80 hr
- Continuous use full back light, 5 hr (40860) 4 hr (40870)
- US and international units (bar, psia, psig, kPa, MPa, kg/cm2)
- Maximum working pressure 700 psia (48.3 bar)
- USB charging port
- Robust housing
| Type | Manifold |
| Domestic/Import | Domestic |
| Series | TITAN® |
| Brand | Yellow Jacket® |
| Package Width | 10 in |
| Package Height | 5 in |
| Package Length | 10.38 in |
| Country of Origin | US |
| Manufacturer | Ritchie Engineering Co |
| UPC | 686800408606 |
| Manufacturer Part Number | 40860 |
Temperature Clamps
2 Years
IP52 Certified
