Reduced Pressure Backflow Detector, 2 in, Groove, 304/304L Stainless Steel

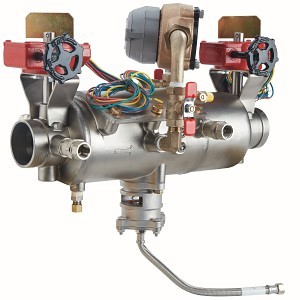

This 2 in Ames Deringer™ 50 reduced pressure detector type II assembly is designed to prevent hazardous contaminants and non-health hazard pollutants from entering the potable water supply system caused by back pressure and back siphonage conditions. Deringer 50 features integral Eccentric-Seal™ butterfly shut-off valves for a short lay length, integrated tamper switches and True-Seal™ and Dual-Action™ checks for high performance at low and high-flow rates. This valve comes with kit to adapt valve from 2 in to 2-1/2 in valve. The kit includes two 2-1/2 in grooved couplings and two 2 in NPT x 2-1/2 in groove adapters. End connections are union-type stainless steel 2 in female NPT threads for ease of installation. The Type II bypass is used to monitor unauthorized water usage, is primarily required on fire sprinkler systems, comes with a gpm meter. Maximum working pressure is 175 psi (12 bar).

2 to 2-1/2 in Adapter Valve Kit, (2) 2 in NPT x 2-1/2 in Groove Adapters and (2) 2-1/2 in Groove Couplings

ANSI B16.1|AWWA C510-07|AWWA C606|cULus Listed|FM Approved|NSF/ANSI 372|UL Listed|USC 10th Edition|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Indoor and Outdoor Applications
