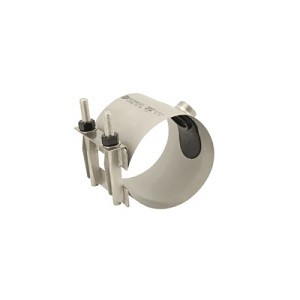

Single Strap Pipe Saddle, 8 in, 2 in FNPT
PartFORFS313905IP7
MFGFS313-905-IP7
Description
FORD Saddle, Single Band, Series: Style FS313, 8 in Nominal, 2 in FNPT, 250 psi, 5/8 in Bolt, 304 Stainless Steel Bolt, 304 Stainless Steel Clamp, Buna-N Gasket
Price/Availability Accessible On Login
- Fully passivated for corrosion resistance
- Saddles 6 in and larger have coined body for gasket retention
- NBR (Buna-N) rubber pad gasket per (ASTM D2000) with raised compression seal
- 9.05 in OD
FORD Stainless Steel Saddles are designed for use where corrosive conditions exist. Designed for all pipe types, the stainless steel construction allows the saddle to conform, reducing stress on the pipe.
| Type | Single Strap |
| Nominal Size | 8 in |
| Connection Type | 2 in FNPT |
| Bolt Material | 304 Stainless Steel |
| Bolt Size | 5/8 in |
| Clamp Material | 304 Stainless Steel |
| Gasket Material | Buna-N Rubber |
| Hole Diameter | 9.05 in |
| Pressure Rating | 250 psi |
| Brand | FORD |
| UNSPSC | 10141501 |
| Manufacturer | Ford Meter Box |
| Manufacturer Part Number | FS313-905-IP7 |
304 Stainless Steel Band, 304 Stainless Steel Lifter Bar, 304 Stainless Steel Taps, 304 Stainless Steel Bolts, Nuts and Washers
1 Year
AWWA C800|ASTM B62/B584|ASTM D2000 Gasket|UL Listed to ANSI/NSF 61|UNS NO C83600 85-5-5-5|PROP65: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
For 1/2 in Through 2 in Taps
