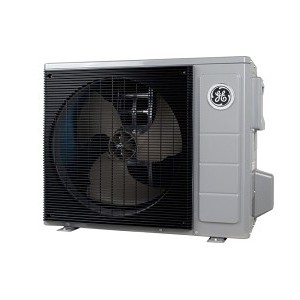

Connect Residential Side Discharge Inverter Heat Pump, 2 ton, 22.2 Kbtu/hr Heating, 208-240 VAC, 1 ph
PartGECNS18H24HA5
MFGNS18H24HA5
Description
GE Appliances, NS18H24HA5, Inverter Heat Pump, Outdoor, Series: Connect, 24000 Btu/hr Cooling, 208 to 230 V, 60 Hz, 1 pH Power Source, 795 cfm Flow Rate, 11.7 EER, 18 SEER, 10 HSPF, 3.5 COP, Inverter Driven Compressor, R-454B Refrigerant, 3/4 in Suction Line, 3/8 in Discharge Line, 0.21 hp Motor, -22 to 125 deg F, 54 to 69 dBA Sound Level, 30-1/8 in H x 17-1/8 in W x 40-3/16 in L Dimensions
Price/Availability Accessible On Login
- Easily accessed controls for easy service
- Offers twelve total operating modes, three in cooling (normal and two dehum), two for heating, and two default defrost options, to fine tune the unit's performance to the application and consumer's needs in 24V applications
- A basepan heater and two defrost modes provide a more thorough defrost, reducing the number of cycles during heating operation
| Type | Side Discharge Inverter |
| Nominal Capacity | 2 ton |
| Heating Capacity | 22.2 Kbtu/hr |
| Voltage Rating | 208-240 VAC |
| Phase | 1 ph |
| Series | Connect |
| Compressor Type | Inverter Driven |
| COP Rating | 3.5 |
| Dimensions | 30-1/8 in H x 17-1/8 in W x 40-3/16 in L |
| Discharge Line Size | 3/8 in |
| Flow Rate | 795 cfm |
| Motor HP | 0.21 hp |
| Power Source | 208 to 230 V, 60 Hz, 1 pH |
| Refrigerant Type | R-454B |
| Sound Level | 54 to 69 dBA |
| Suction Line Size | 3/4 in |
| Temperature Rating | -22 to 125 deg F |
| Brand | GE Appliances |
| Manufacturer | GE Appliances |
| Manufacturer Part Number | NS18H24HA5 |
Limited 5 year Entire Appliance|Limited 10 year Entire Appliance with Registration
