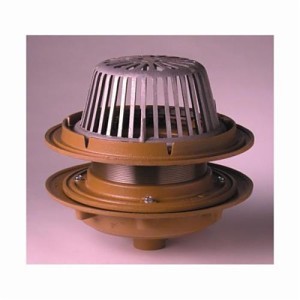

1015 Roof Assembly, 15 in Dia, 4 in Outlet, No Hub, Aluminum Dome
PartJRS1015Y04ADRDP
MFG1015Y04 (-AD-RDP)
Description
Smith® Roof Drain, Special Purpose, Series: 1015, 4 in Outlet, No-Hub Connection, Cast Iron Drain, 15-1/4 in Dia Dimensions
Price/Availability Accessible On Login
- AD: aluminum dome
- RDP: roof deck plate
- Large, low profile dome for quick drainage and production against debris
- Adjustable extension for different installation thicknesses
- Wide clamping surface to hold flashing and roofing materials
- Reversible collar allows for low position and high position ranges
- Adjustable extension for different gravel stop
- Duco cast iron body with adjustable extension sleeve, reversible collar, combined flashing clamp and gravel stop
- 102.5 sq-in free area
- Note: stated flow rates for roof drains are based on particular test piping configurations and dimensions
- Installed roof drain flow rates cannot be stated unless the attached piping configuration is known and the effects of the drainage calculated
Used in flat roofs of any construction. The adjustable extension sleeve permits adjustment from a minimum of 1-1/4 in (32) to a maximum of 4 in (100), easily accommodating up to 2-3/4 in (70) of varying insulation thicknesses. The positive threading allows smooth perimeter movement and circumferential support of the top at any adjusted elevation. Large low profile dome provides sufficient free area for quick drainage of rainwater and protection against debris.
| Type | Roof Assembly |
| Diameter | 15 in |
| Outlet Size | 4 in |
| Connection Type | No Hub |
| Dome Material | Aluminum |
| Series | 1015 |
| Dimensions | 15-1/4 in Dia |
| Drain Material | Cast Iron |
| Brand | Smith® |
| UNSPSC | 40141700 |
| Manufacturer | Jay R. Smith Mfg. Co |
| UPC | 727753419117 |
| Manufacturer Part Number | 1015Y04 (-AD-RDP) |
For Flat Roofs of Any Construction
