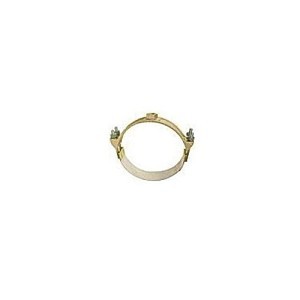

2-Piece Pipe Saddle, 9 in, 1 in CC Tapered Thread
PartMCD384581
MFG4148-058
Description
A.Y. McDonald Service Saddle, 2-Piece Bolted Hinged, 8 x 1 in Nominal, AWWA Taper Thread, 200 psig, Cast Brass Clamp, EPDM Gasket, 9.05 in ID
Price/Availability Accessible On Login
Documentation
- 304L stainless steel straps and 5/8 in studs, PTFE coated stainless steel nuts and washers
- Pipe, tap size and thread type identified on saddle
- Outlet boss with large wrench flats
- EPDM O-ring
A.Y. McDonald Mfg. Co. 3845 A and B and 3846 A and B service saddles with wide stainless steel band are designed for use on service line connections to cast iron OD PVC pipe AWWA C900/C905 water mains. The pressure capabilities equal, but do not exceed the working pressure rating of the pipe up to 200 psig. For C900/C905 PVC pipe.
| Type | 2-Piece |
| Nominal Size | 9 in |
| Connection Type | 1 in CC Tapered Thread |
| Clamp Material | Cast Brass |
| Dimensions | 9.05 in ID |
| Domestic/Import | Domestic |
| Gasket Material | EPDM |
| Hole Diameter | 9.05 in OD |
| Pressure Rating | 200 psig |
| Brand | A.Y. McDonald |
| UNSPSC | 31162906 |
| Alternate Part Number 1 | 3845 |
| Country of Origin | US |
| Manufacturer | A.Y. McDonald |
| UPC | 053565247922 |
| Manufacturer Part Number | 4148-058 |
AWWA C800|ASTM B62/B584 |UNS No C83600-85-5-5-5 Brass|NSF/ANSI 61
