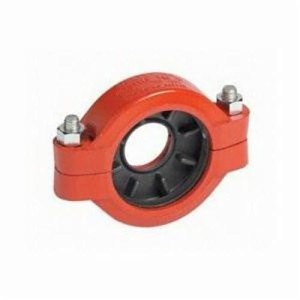

750 Standard Coupling, 4 x 3 in, Groove, Ductile Iron, Enamel Painted, EPDM Gasket
PartVFPFC43
MFGLD44750PE0
Description
Victaulic® Pipe Reducing Coupling, Series: 750, Reducing Coupling Fitting/Connector, 4 x 3 in Nominal, Grooved End Style, 8.9 in Length, 500 psi Pressure, Ductile Iron, Orange Enamel, 6 in Dia x 2-1/4 in W Dimensions
Price/Availability Accessible On Login
- Grade E EPDM gasket
- Warning: For one time field test only, the maximum joint working pressure may be increased to 1-1/2 times the figures shown
- Bolts/nuts: Heat-treated plated carbon steel, trackhead meeting the physical and chemical requirements of ASTM A-449 and physical requirements of ASTM A-183
Eliminates need for two couplings and a reducing fitting. Features special reducing gasket for pressure responsive sealing. Working pressures shown are based on standard wall carbon steel pipe roll or cut grooved in accordance with Victaulic® specifications.
| Series | 750 |
| Type | Standard |
| Nominal Size | 4 x 3 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Enamel Painted |
| Potable/Non-Potable | Non-Potable |
| Gasket Material | EPDM |
| Color | Orange |
| Dimensions | 6 in Dia x 2-1/4 in W |
| Fitting/Connector Type | Coupling |
| Length | 8.9 in |
| Pressure Rating | 500 psi |
| Brand | Victaulic® |
| UNSPSC | 40173604 |
| Manufacturer | Victaulic |
| UPC | 688304449826 |
| Manufacturer Part Number | LD44750PE0 |
cULus Listed|Ductile Iron Conforming to ASTM A536|Grade 65-45-12|FM Approved|LPCB 104-1a/05|Vds Approved
Price/Availability Accessible On Login
Victaulic®750 Standard Coupling, 4 x 3 in, Groove, Ductile Iron, Enamel Painted, EPDM Gasket
