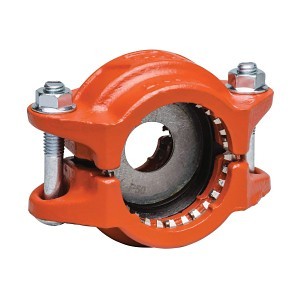

P50 Rigid Coupling, 1-1/2 x 1-1/4 in, Groove, Ductile Iron, Enamel Painted, EPDM Gasket
PartVFPIRRC112114
MFGLB31P50PE0
Description
Victaulic®, LB31P50PE0, Reducing Coupling, Series: P50, Fitting/Connector: Coupling, 1-1/2 x 1-1/4 in Nominal, 2.76 in Thickness, 4.9 in Length, 300 psi Pressure, Ductile Iron, Orange Painted, -30 to 250 deg F, 1.9 x 1.05 in OD Dimensions
Price/Availability Accessible On Login
- Available sizes: ½ – 2”
- Pressures up to 300 psi/2068 kPa/21 bar
- Also for use on 6061-T6 aluminum pipe conforming to ASTM B241 for Schedule 40 only
| Series | P50 |
| Type | Rigid |
| Nominal Size | 1-1/2 x 1-1/4 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Enamel Painted |
| Potable/Non-Potable | Non-Potable |
| Gasket Material | EPDM |
| Color | Orange |
| Dimensions | 1.9 x 1.05 in OD |
| Fitting/Connector Type | Coupling |
| Length | 4.9 in |
| Pressure Rating | 300 psi |
| Temperature Rating | -30 to 250 deg F |
| Thickness | 2.76 in |
| Brand | Victaulic® |
| UNSPSC | 40142000 |
| Manufacturer | Victaulic |
| UPC | 883481804523 |
| Manufacturer Part Number | LB31P50PE0 |
EPDM Rubber Gasket, Carbon Steel Track Bolts and Hex Nuts
1 Year Limited
ASTM A536 Grade 65-45-12|ASME B31.1/B31.3/B31.9|ASTM A449/A563 Grade B/B633 ZN/FE5 Type III Bolts and Nuts
For use on carbon steel pipe
Price/Availability Accessible On Login
Victaulic®P50 Rigid Coupling, 1-1/2 x 1-1/4 in, Groove, Ductile Iron, Enamel Painted, EPDM Gasket
