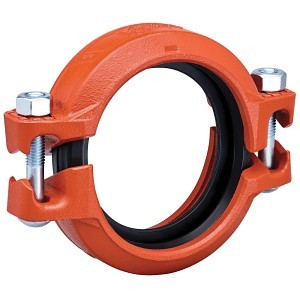

Rigid Coupling, 2 in, Groove, Ductile Iron, SCH 10, Enamel Painted
PartVFPQC2
MFGC020107PE0
Description
Victaulic® QuickVic™ Rigid Coupling, Series: 107V, Fitting/Connector Type: Coupling, 2 in Nominal, SCH 10 Schedule, Up to 750 psi Pressure, Ductile Iron, Orange Coated, -30 to 250 deg F, 2-3/8 in OD, Domestic
Price/Availability Accessible On Login
- Shift limiting slant pad provides rigidity
| Fitting/Connector Type | Coupling |
| Type | Rigid |
| Nominal Size | 2 in |
| End Style | Groove |
| Material | Ductile Iron |
| Finish | Enamel Painted |
| Schedule Rating | SCH 10 |
| Dimensions | 2-3/8 in OD |
| Domestic/Import | Domestic |
| Pressure Rating | Up to 750 psi |
| Series | 107V |
| Temperature Rating | -30 to 250 deg F |
| Brand | Victaulic® |
| UNSPSC | 40172604 |
| Country of Origin | US |
| Manufacturer | Victaulic |
| UPC | 195150239513 |
| Manufacturer Part Number | C020107PE0 |
(2) 1/2 x 2-3/4 in Carbon Steel Oval Neck Track Bolts, (2) Carbon Steel Hex Nuts and EPDM Gasket
ASTM A449/ASTM A563 Grade B/ASTM A536 Grade 65-45-12/ASTM B633|cULus Listed|FM Approved|LPCB Certified
Price/Availability Accessible On Login
Victaulic®Rigid Coupling, 2 in, Groove, Ductile Iron, SCH 10, Enamel Painted
