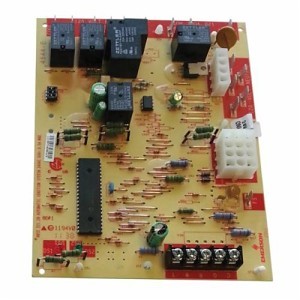

Replacement Integrated Furnace Control, 25 VAC, 0.45 A
PartWRG50A66743
MFG50A66-743
Description
White-Rodgers™ Replacement Integrated Furnace Control, Accessory Type: Replacement Integrated Furnace Control, 25 VAC, 0.45 A, Natural, Manufactured, Mixed, LP Gas Gas, 20 s Igniter Warm-Up, Surface Mounting, Silicon Nitride, Import
Price/Availability Accessible On Login
- 3 fan speeds
- Remote flame sense
- -40 to 176 deg F
- 5 to 93 percent relative humidity
- 1.5 A valve relay
- 6 A ignitor relay
- 2.2 FLA to 3.5 LRA inducer relay
- 14.5 FLA to 25 LRA circulator relay
The 50A66-743 is an automatic gas interrupted ignition control that employs a microprocessor to continually monitor, analyze, and control the proper operation of the gas burner, inducer, and fan. signals interpreted during continual surveillance of the thermostat and flame sensing element initiate automatic ignition of the burner, sensing of the flame, and system shutoff during normal operation. these controls incorporate system fault analysis for quick gas flow shutoff , coupled with automatic ignition retry upon sensing a fault correction.
| Type | Control Board |
| Accessory Type | Replacement Integrated Furnace Control |
| Amperage Rating | 0.45 A |
| Domestic/Import | Import |
| Gas Type | Natural, Manufactured, Mixed, LP Gas |
| Igniter Warm-Up Time | 20 s |
| Material | Silicon Nitride |
| Mounting Type | Surface |
| Voltage Rating | 25 VAC |
| Brand | White-Rodgers™ |
| UNSPSC | 40101800 |
| Country of Origin | MX |
| Manufacturer | Emerson Electric |
| UPC | 786710548659 |
| Manufacturer Part Number | 50A66-743 |
Diagnostic Indicator Flash Codes, Controls Gas Valve, Igniter, Blower, Inducer, Humidifier and Air Cleaner
