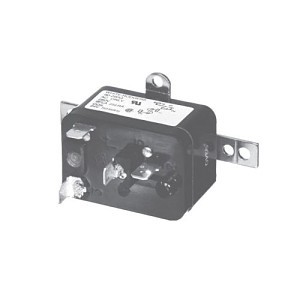

Fan Relay, 125 mA, SPST/NO Contact, 24 VAC V Coil
PartWRG90290Q
MFG90-290Q
Description
White-Rodgers™ Fan Relay, 125 mA, 50/60 Hz Frequency, 24 V AC Coil, 1NO 1 Form A SPST Contact Form, 125/250 VAC Contact, 1 Pole, Quick-Connect Terminal, Totally Enclosed Enclosure, -40 to 150 deg F, 2-3/8 in L x 1-5/8 in W x 1-1/2 in H Dimensions
Price/Availability Accessible On Login
- Compact, totally enclosed design
- Quiet, reliable and economical
| Type | Fan Relay |
| Amperage Rating | 125 mA |
| Coil Voltage | 24 V AC |
| Contact Form | 1NO 1 Form A SPST |
| Contact Rating | 125/250 V AC |
| Dimensions | 2-3/8 in L x 1-5/8 in W x 1-1/2 in H |
| Enclosure Type | Totally Enclosed |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 1 |
| Temperature Rating | -40 to 150 deg F |
| Terminal Type | Quick-Connect |
| Brand | White-Rodgers™ |
| UNSPSC | 39122300 |
| Country of Origin | CN |
| Manufacturer | Copeland |
| UPC | 786710027987 |
| Manufacturer Part Number | 90-290Q |
Limited
CSA LR13360|UL E12139/E22381
Heating, Cooling Applications and General Switching
